Precision Control VFD Variable Frequency Drive Compatible For PM / IM

Precision Control VFD Variable Frequency Drive Compatible For PM and IM

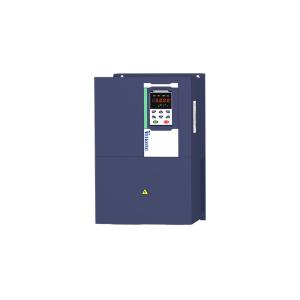

1. Veikong VFD530 series high performance precision control AC drives

Power range for reference:

1 phase 200 or 240V 50 or 60HZ from 0.75 to 7.5kw

3 phase 200 or 240V 50 or 60HZ from 0.75 to 75kw

3 phase 380 or 480V 50 or 60HZ from 0.75 to 710kw

1) Special brake logic mechanism for crane and hoist

2) Magnetic flux brake gain

3) Output frequency up to 3000HZ

4) High capacity 256K TI DSP with faster response and higher accuracy

5) Encoder auto tune

6) 2 PID loop for HVAC

7) 2 relay output

2. Veikong VFD530 series power range and current output for reference

3. Veikong VFD530 series special brake logic for lifting function

1) Control circuit wiring Please pay attention to the following matters when wiring: DI3 is brake feedback, if the brake has no feedback, you don’t need to connect Relay 1 is fault signal output, and relay 2 is brake control signal output.

2) Confirm the direction of motor rotation After confirming the surrounding safety, manually make the brake in the released state, press the "MK" key on the keyboard, and observe whether the direction of the motor is correct: forward transmission upwards, reverse downwards. If the direction of the motor is wrong, reverse any two connections of U, V, W.

3) Setting motor’s parameters Set following parameters according to the motor’s nameplate

4) Motor self-learning 5,Open loop self-learning Set the motor parameters, if it is encoder closed-loop control, set the following encoder parameters

5) Lifting adjustment

4. VFD530 series User Manual and Porduct Brochure Download

VEIKONG VFD530 HP AC DRIVE USER MANUAL V1.0.pdf

5. Veikong company brief introduction

Veikong is a professional VFD manufacturer in China for more than 20 years with strong R&D groups and high-standard products and service. Most clients who use European brands began to use Veikong in some special fields like air compressor, construction lifting and textile industry etc. We also receive many nice feedback from our clients, and we do believe that we can go along with customers better and keep providing higher standard products and service for all of you!

Veikong, your trusted supplier~
